Tuesday, December 16, 2008

What's Going on Here?

I was watching the webcam yesterday and noticed a sequence of men and machines repeating a process over and over again. They progressed from the left of the screen to the middle right. This is the standard "home" view you will see from the webcam.

When I zoomed in to study it I was able to figure this process out. The photo quality is not as great as usual, but, it was a rainy day and the camera shield was wet. But, still I am impressed with the quality of the zoom images. How Cool!

The process begins on the first machine on the left. You will notice the roll on a spoll. I thought it was paper, or something soft and pliable. But it is sheet metal! In this photo above you can see it is being fed into the machine as a flat continuous sheet. This machine edges, shapes, and cuts the standing seam roof sections for our radial (curved) roof.

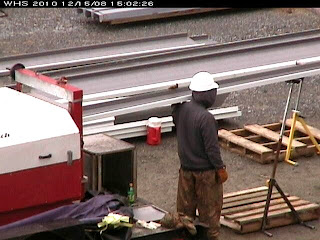

On the other end, a worker removes the length of metal which is now folded on two sides and cut into 10-24 ft sections. The standing seam is J -curved and locks over the matching edge on each adjacent sheet.

It is then fed into the next machine which is a "Bending machine". This machine puts the appropriate degree of curvature to the length in the overall piece of metal so it will fit properly on our radial roof section.

Each piece is then placed in an ordered and standing storage bin and kept ready for installation once the roofing under layers are completed. Every piece of our roof is being fabricated to specifications on site.

There are many, many pieces to be installed. Notice that you are seeing the "white" underside of the standing roof sections. The top finish of these panels is charcoal gray. You can see that color in the second photo as the metal comes off of the roll. Or look at the finished sections of the actual roof over the gyms in the center of the home view.


So, you never know what you can learn by spending a few minutes looking at the webcam! You can check out the view via the live webcam if you....
